Overview

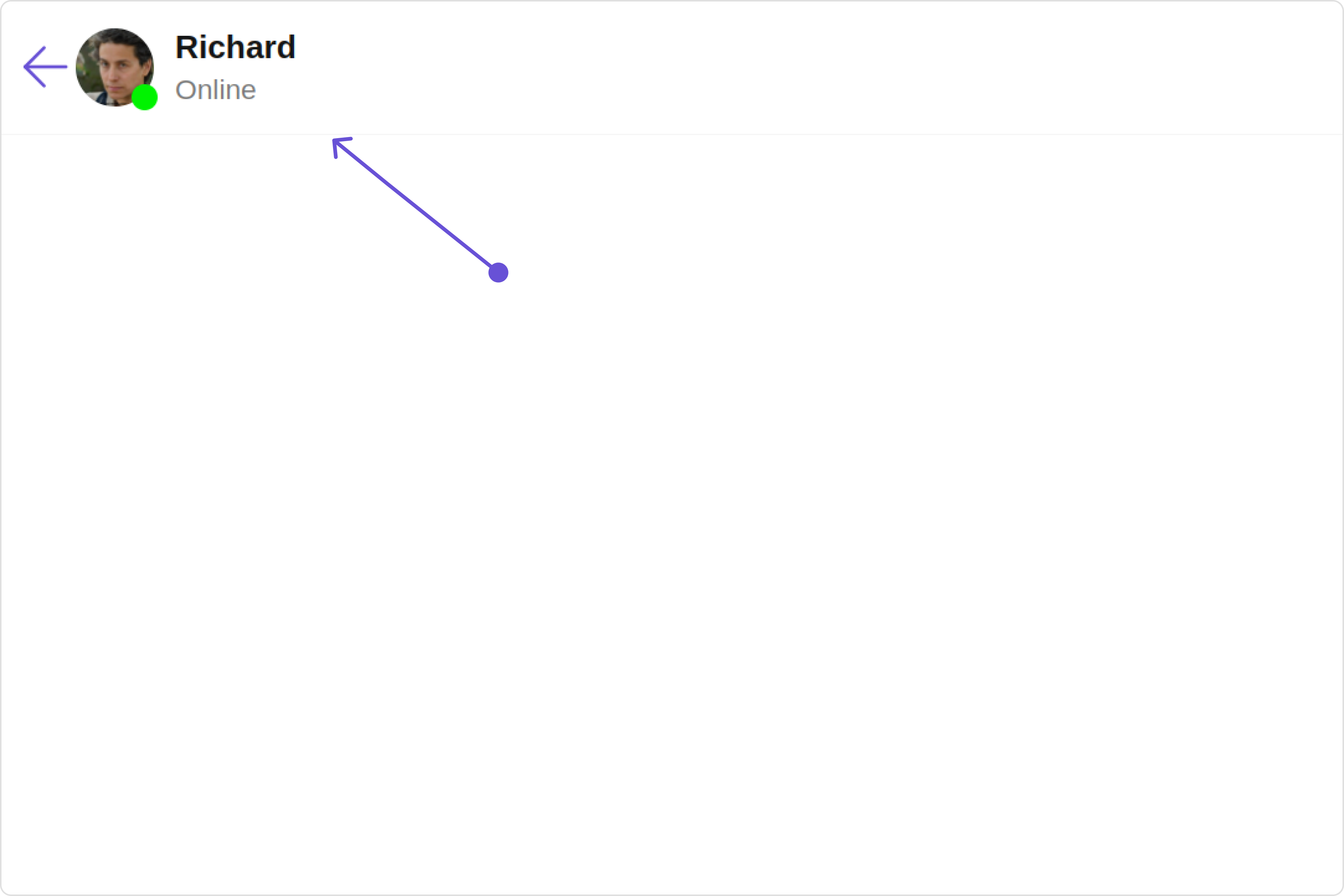

MessageHeader is a Component that showcases the User or Group details in the toolbar. Furthermore, it also presents a typing indicator and a back navigation button for ease of use.

The MessageHeader is comprised of the following components:

Components	Description
ListItem Component	This component’s view consists of avatar, status indicator , title, and subtitle. The fields are then mapped with the SDK’s user, group class.
Back Button	BackButton that allows users to navigate back from the current activity or screen to the previous one

Usage

Integration

app.module.ts
app.component.ts
app.component.html

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { CometChatMessageHeader } from "@cometchat/chat-uikit-angular";
import { AppComponent } from "./app.component";

@NgModule({
  imports: [BrowserModule, CometChatMessageHeader],
  declarations: [AppComponent],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. OnBack

OnBack is triggered when you click on the back button of the Message Header component. You can override this action using the following code snippet. Example In this example, we are employing the onBack action.

app.component.ts
app.component.html

import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  public handleOnBack = () => {
    console.log("Your custom on back action");
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

2. OnError

This action doesn’t change the behavior of the component but rather listens for any errors that occur in the Message Header component. Example In this example, we are employing the onError action.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  public handleOnError = (error: CometChat.CometChatException) => {
    console.log("your custom on error action", error);
  };

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK. The MessageHeader component does not have any exposed filters.

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The MessageHeader component does not produce any events.

Customization

To fit your app’s design requirements, you can customize the appearance of the Message Header component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

1. MessageHeader Style

To customize the appearance, you can assign a MessageHeaderStyle object to the MessageHeader component. Example In this example, we are employing the MessageHeaderStyle.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { MessageHeaderStyle } from '@cometchat/uikit-shared';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  messageHeaderStyle = new MessageHeaderStyle({
    background:"#f2f3ff",
    border:"2px solid #a117eb",
    borderRadius:"20px",
    subtitleTextColor:"#2d55a6"
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

The properties exposed by MessageHeaderStyle are as follows:

Property	Description	Code
border	Used to set border	`border?: string,`
borderRadius	Used to set border radius	`borderRadius?: string;`
background	Used to set background colour	`background?: string;`
height	Used to set height	`height?: string;`
width	Used to set width	`width?: string;`
backButtonIconTint	Used to set back button icon tint	`backButtonIconTint?: string;`
typingIndicatorTextFont	Used to set typing indicator textStyle	`typingIndicatorTextFont?: string;`
typingIndicatorTextColor	Used to set typing indicator text color	`typingIndicatorTextColor?: string;`
subtitleTextFont	Used to set subtitle text font style	`subtitleTextFont?: string;`
subtitleTextColor	Used to set subtitle text color	`subtitleTextColor?: string;`
onlineStatusColor	Used to set online status colour	`onlineStatusColor?: string;`
privateGroupIconBackground	Used to set private groups icon backgound	`privateGroupIconBackground?: string`
passwordGroupIconBackground	Used to set protected groups icon backgound	`passwordGroupIconBackground?: string`

2. Avatar Style

If you want to apply customized styles to the Avatar component within the MessageHeader Component, you can use the following code snippet. For more information you can refer Avatar Styles.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, AvatarStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  avatarStyle = new AvatarStyle({
    backgroundColor:"#cdc2ff",
    border:"2px solid #6745ff",
    borderRadius:"10px",
    outerViewBorderColor:"#ca45ff",
    outerViewBorderRadius:"5px",
    nameTextColor:"#4554ff"
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

3. ListItem Style

If you want to apply customized styles to the List Item component within the MessageHeader Component, you can use the following code snippet. For more information, you can refer ListItem Styles.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  listItemStyle: ListItemStyle = new ListItemStyle({
      background: "transparent",
      padding:"20px",
      border:"1px solid #e9b8f5",
      titleColor:"#8830f2",
      borderRadius:"20px"
  });

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

4. StatusIndicator Style

If you want to apply customized styles to the Status Indicator component within the MessageHeader Component, you can use the following code snippet. For more information you can refer StatusIndicator Styles.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  statusIndicatorStyle: any = ({
    height: '20px',
    width: '20px',
    backgroundColor: 'red'
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements. Here is a code snippet demonstrating how you can customize the functionality of the Message Header component.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  hideBackButton = true;
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Following is a list of customizations along with their corresponding code snippets:

Property	Description	Code
user	Used to pass user object of which header specific details will be shown	`[user]="userObject"`
group	Used to pass group object of which header specific details will be shown	`[group]="groupObject"`
passwordGroupIcon	Used to set custom protected group icon	`passwordGroupIcon="your custom private group icon url"`
privateGroupIcon	Used to set custom private group icon	`privateGroupIcon="your custom protected group icon url"`
hideBackButton	Used to toggle back button visibility	`hideBackButton=true`
disableTyping	Used to enable disable typing indicators	`disableTyping=true`
disableUsersPresence	Used to toggle functionality to show user’s presence	`disableUsersPresence=true`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

ListItemView

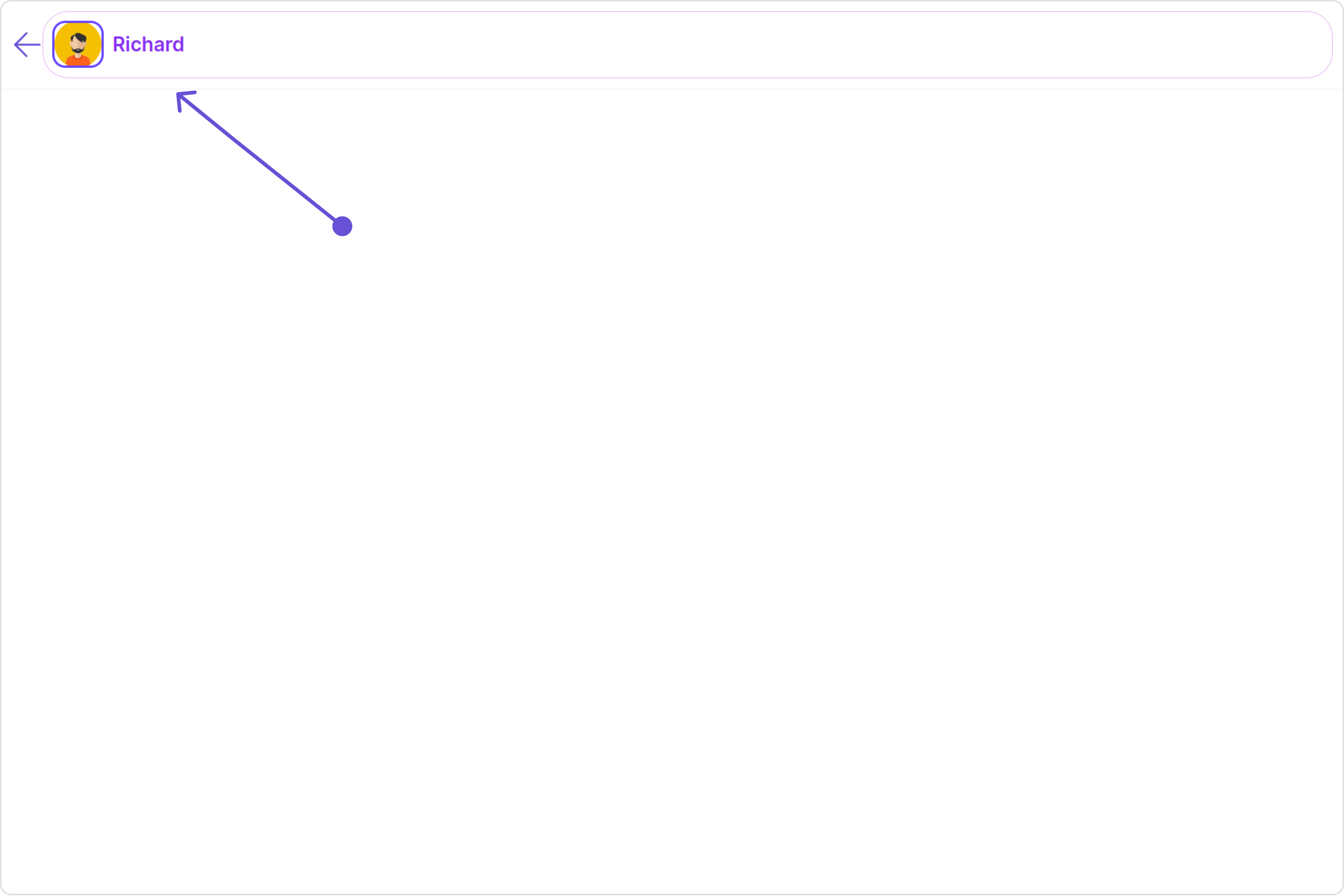

The MessageHeader component consists of a listItemView. You can customize the ListItem according to your requirements by using the listItemView property. Example

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle, AvatarStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding:"5px",
    border:"1px solid #e9b8f5",
    titleColor:"#8830f2",
    borderRadius:"20px",
    width:"100% !important"
  });
  avatarStyle = new AvatarStyle({
    backgroundColor:"#cdc2ff",
    border:"2px solid #6745ff",
    borderRadius:"10px",
    outerViewBorderColor:"#ca45ff",
    outerViewBorderRadius:"5px",
    nameTextColor:"#4554ff"
  });
  hideSeparator = true;
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

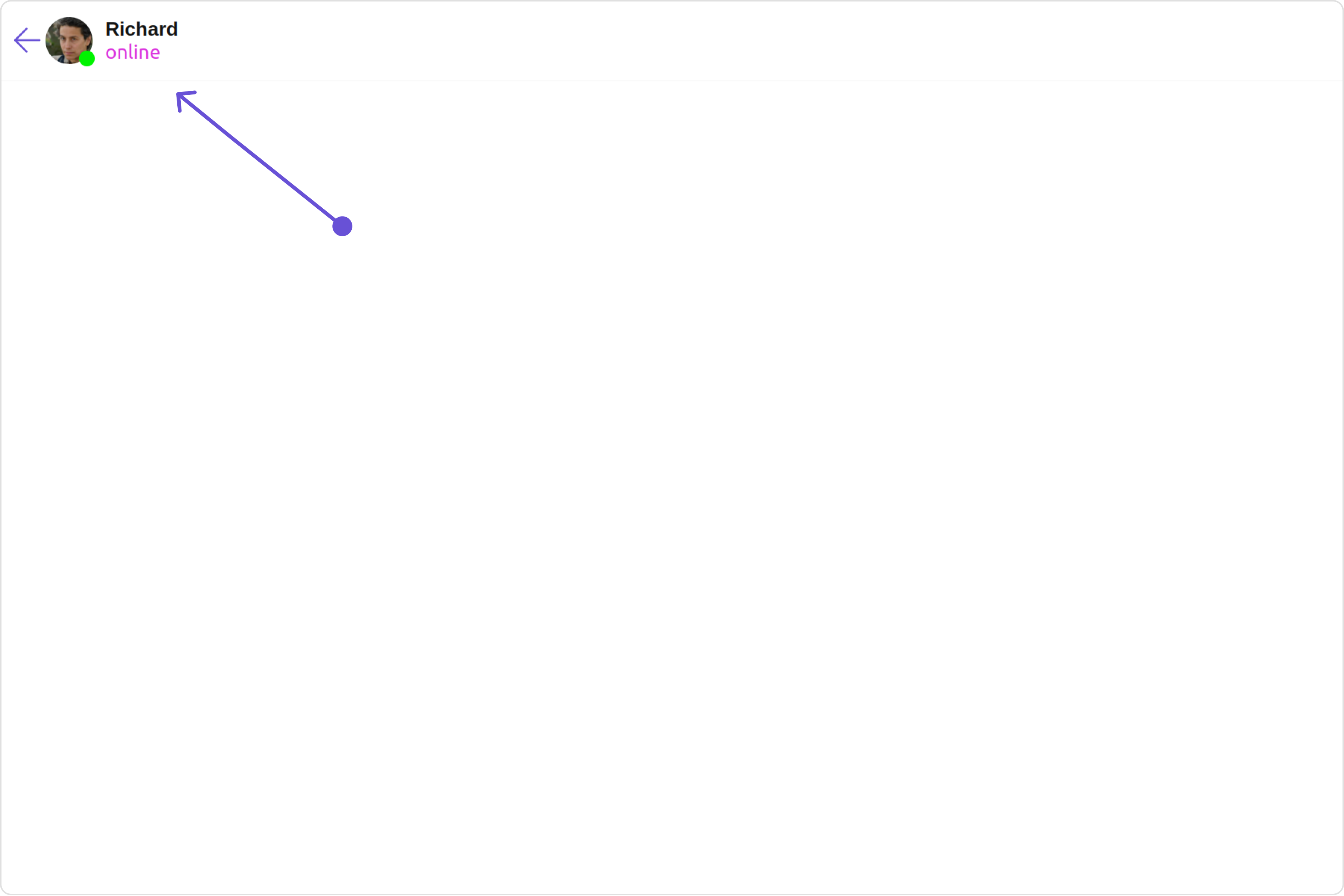

SubtitleView

By using the subtitleView property, you can modify the SubtitleView to meet your specific needs. Example

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

BackButtonIconURL

You can customize the Back Icon according to your specific requirements by using the backButtonIconURL property. Example

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;
  BackButtonIconURL = 'your custom back icon url';
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

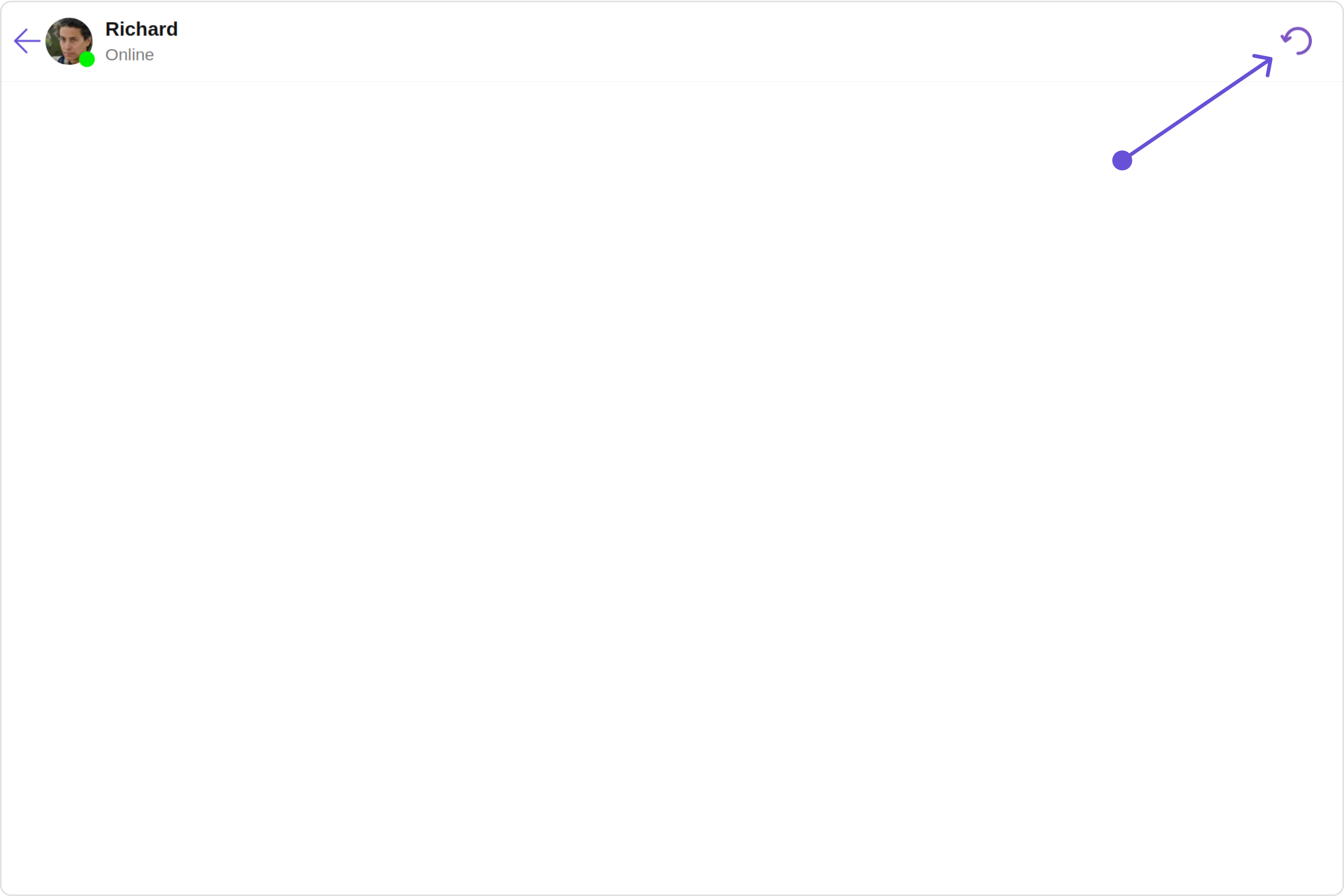

You can customize the Menu options to meet your specific needs by using the menu property. Example

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent implements OnInit{

  ngOnInit(): void {
    CometChat.getUser("uid").then((user:CometChat.User)=>{
      this.userObject=user;
    });
  }

  public userObject!: CometChat.User;
  BackButtonIconURL = 'your custom back icon url';
  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  handleReload(): void {
    window.location.reload();
  };

  getButtonStyle() {
    return {
      height: '20px',
      width: '20px',
      border: 'none',
      borderRadius: '0',
      background: 'transparent'
    };
  };
  getButtonIconStyle() {
    return {
      color: '#7E57C2'
    };
  };
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

​Overview

​Usage

​Integration

​Actions

1. OnBack

2. OnError

​Filters

​Events

​Customization

​Style
