Call Log History - CometChat Docs

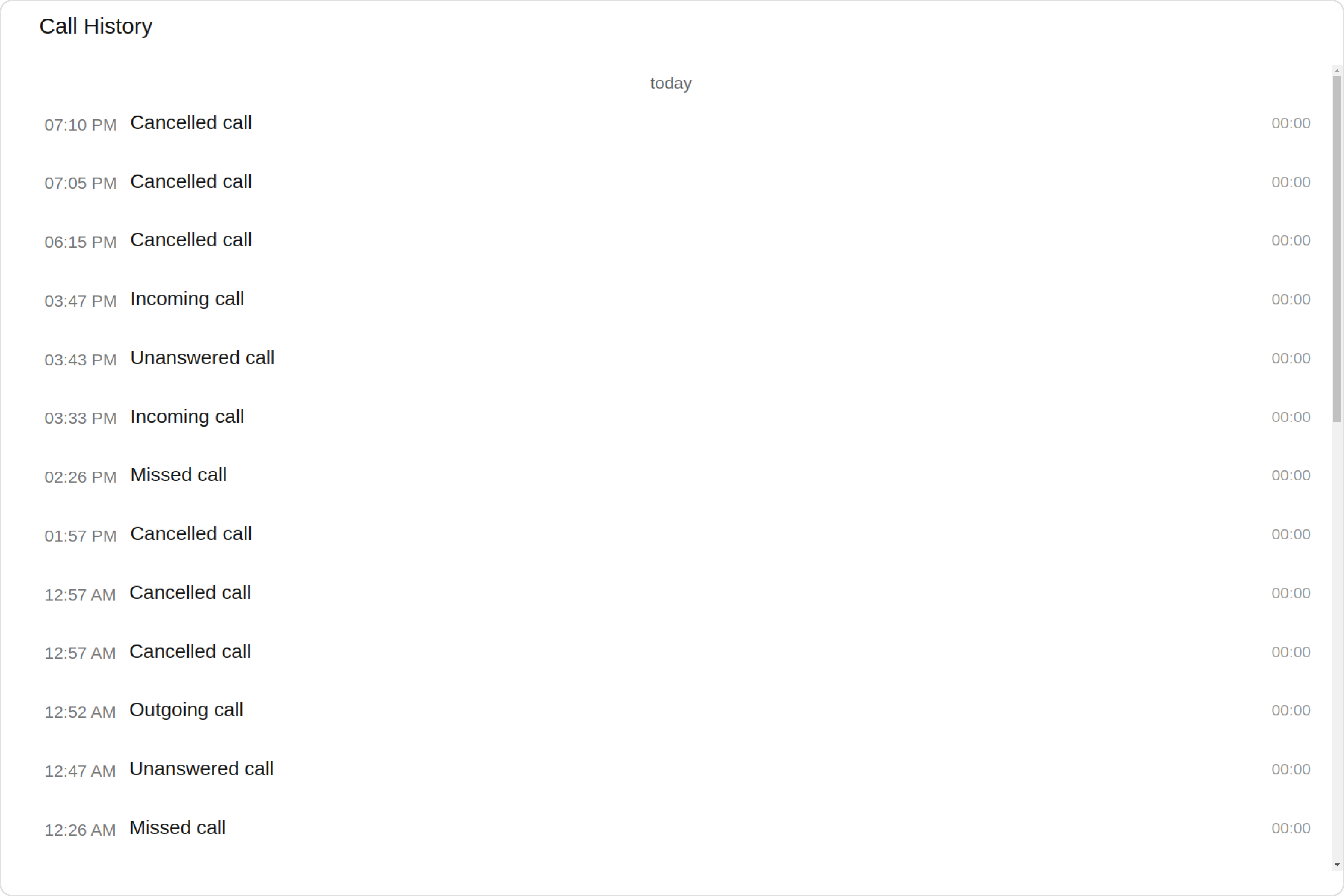

Overview

CometChatCallLogHistory is a Component that shows a paginated list of all the calls between the logged-in user & another user or group. This allows the user to see all the calls with a specific user/group they have initiated/received/missed.

The Call Log History is comprised of the following components:

Components	Description
CometChatList	a reusable container component having title, search box, customisable background and a List View
CometChatListItem	a component that renders data obtained from a Group object on a Tile having a title, subtitle, leading and trailing view
cometchat-divider	This component is a visual element used to separate content or sections within a CometChat interface, enhancing readability and visual organization
cometchat-date	This Component used to show the date and time. You can also customize the appearance of this widget by modifying its logic.
cometchat-button	This component represents a button with optional icon and text.

Usage

Integration

app.module.ts
app.component.ts
app.component.html

import { CUSTOM_ELEMENTS_SCHEMA, NgModule } from "@angular/core";
import { BrowserModule } from "@angular/platform-browser";
import { CometChatCallLogHistory } from "@cometchat/chat-uikit-angular";
import { AppComponent } from "./app.component";

@NgModule({
  imports: [BrowserModule, CometChatCallLogHistory],
  declarations: [AppComponent],
  providers: [],
  bootstrap: [AppComponent],
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
})
export class AppModule {}

Actions

Actions dictate how a component functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the component to fit your specific needs.

1. onBackClick

onBackClick is triggered when you click the Back button Icon of the Call Log History component. It does not have a default behavior. However, you can override its behavior using the following code snippet.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public handleOnBack = () => {
    console.log("Your custom on back action");
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

1. onItemClick

onItemClick is triggered when you click on a ListItem of the of the Call Log History component. It does not have a default behavior. However, you can override its behavior using the following code snippet.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public handleOnItemClick = (call: any) => {
    console.log("your custom on item click action");
  };
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

3. onError

This action doesn’t change the behavior of the component but rather listens for any errors that occur in the Call Log History component.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public handleOnError = (error: CometChat.CometChatException) => {
    console.log("your custom on error action", error);
  };
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

1. CallLogRequestBuilder

The CallLogRequestBuilder enables you to filter and customize the Call Log History based on available parameters in CallLogRequestBuilder. This feature allows you to create more specific and targeted queries when fetching the call logs. The following are the parameters available in CallLogRequestBuilder

Methods	Type	Description
setLimit	number	Specifies the number of call logs to fetch.
setCallType	String	Sets the type of calls to fetch (call or meet).
setCallStatus	callStatus	Sets the status of calls to fetch (initiated, ongoing, etc.)
setHasRecording	boolean	Sets whether to fetch calls that have recordings.
setCallCategory	string	Sets the category of calls to fetch (call or meet).
setCallDirection	string	Sets the direction of calls to fetch (incoming or outgoing)
setUid	string	Sets the UID of the user whose call logs to fetch.
setGuid	string	Sets the GUID of the user whose call logs to fetch.
setAuthToken	string	Sets the Auth token of the logged-in user.

Example In the example below, we’re filtering Call Log History to show only canceled calls and setting the limit to five.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";
import { CallLogRequestBuilder } from '@cometchat/calls-sdk-javascript';


@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  callLogRequestBuilder = new CallLogRequestBuilder().setAuthToken("auth-token").setLimit(5).setCallStatus("cancelled").build();
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Events

Events are emitted by a Component. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The CallLogHistory does not produce any events.

Customization

To fit your app’s design requirements, you have the ability to customize the appearance of the CallLogHistory component. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the component in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the component.

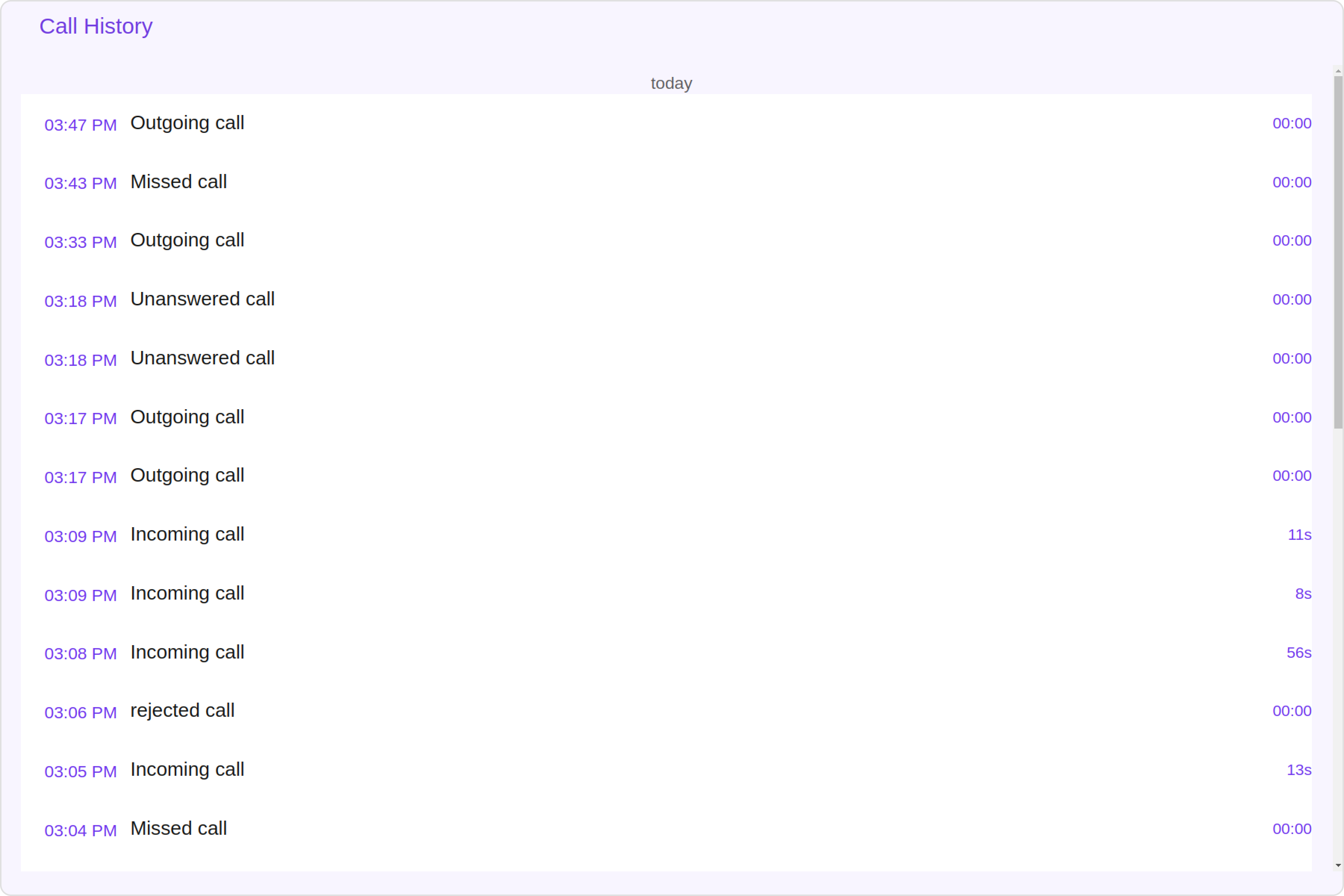

1. CallLogHistory Style

To customize the appearance, you can assign a CallLogHistoryStyle object to the Call Log History component. Example In this example, we are employing the callLogHistoryStyle.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";
import { CallLogHistoryStyle } from '@cometchat/uikit-shared';


@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  callLogHistoryStyle = new CallLogHistoryStyle({
    background: "#f4f0fc",
    backIconTint: "#5f20e6",
    titleColor: "#5f20e6",
    dateTextColor: "#5f20e6",
    dateSeparatorTextColor: "#5f20e6",
    border: "2px solid #5f20e6",
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

The following properties are exposed by CallLogHistoryStyle:

Property	Description	Code
border	Used to set border	`border?: string,`
borderRadius	Used to set border radius	`borderRadius?: string;`
background	Used to set background colour	`background?: string;`
height	Used to set height	`height?: string;`
width	Used to set width	`width?: string;`
titleFont	Used to set title font	`titleFont?: string,`
titleColor	Used to set title color	`titleColor?: string;`
emptyStateTextColor	Used to set empty state text color	`emptyStateTextColor?: string;`
emptyStateTextFont	Used to set empty state text font	`emptyStateTextFont?: string;`
errorStateTextColor	Used to set error state text color	`errorStateTextColor?: string;`
errorStateTextFont	Used to set error state text font	`errorStateTextFont?: string;`
loadingIconTint	Used to set loading icon tint	`loadingIconTint?: string;`
backIconTint	Used to set back icon tint	`backIconTint?: string;`
dateTextFont	Used to set date text font	`dateTextFont?: string;`
dateTextColor	Used to set date text color	`dateTextColor?: string;`
dateSeparatorTextFont	Used to set date separator text font	`dateSeparatorTextFont?: string;`
dateSeparatorTextColor	Used to set date separator text color	`dateSeparatorTextColor?: string;`
callDurationTextFont	Used to set call duration text font	`callDurationTextFont?: string;`
callDurationTextColor	Used to set call duration text color	`callDurationTextColor?: string;`
callStatusTextFont	Used to set call status text font	`callStatusTextFont?: string;`
callStatusTextColor	Used to set call status text color	`callStatusTextColor?: string;`
dividerColor	Used to set divider color	`dividerColor?: string;`

2. ListItem Style

If you want to apply customized styles to the List Item component within the Call Log History Component, you can use the following code snippet. For more information, you can refer ListItem Styles.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, ListItemStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  listItemStyle: ListItemStyle = new ListItemStyle({
    background: "transparent",
    padding: "5px",
    border: "1px solid #e9b8f5",
    titleColor: "#8830f2",
    borderRadius: "20px",
    width: "100% !important"
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

Functionality

These are a set of small functional customizations that allow you to fine-tune the overall experience of the component. With these, you can change text, set custom icons, and toggle the visibility of UI elements. Here is a code snippet demonstrating how you can customize the functionality of the Call Log History component.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import { DatePatterns } from '@cometchat/uikit-resources';

import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  public datePattern: DatePatterns = DatePatterns.DateTime;
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

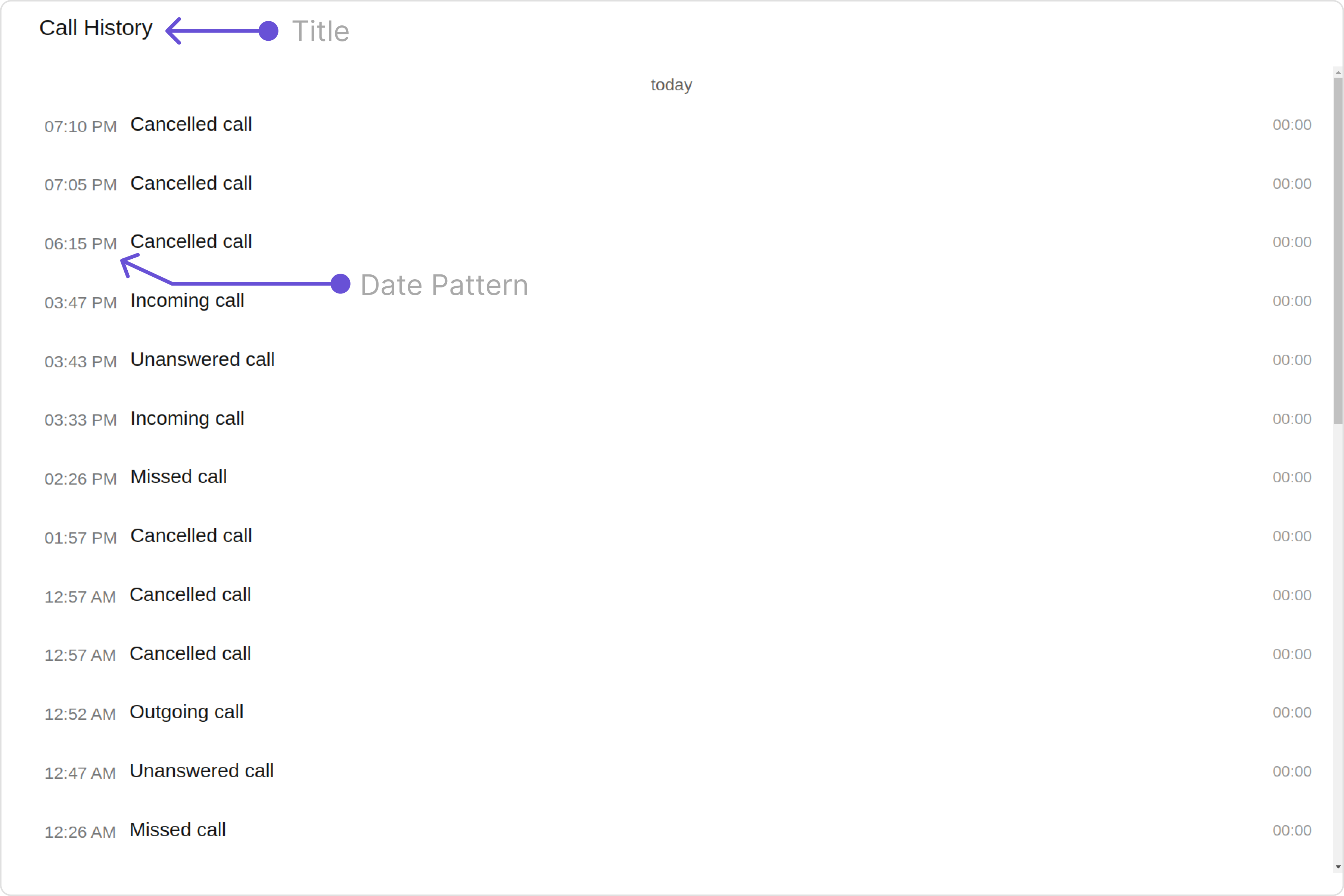

Default:

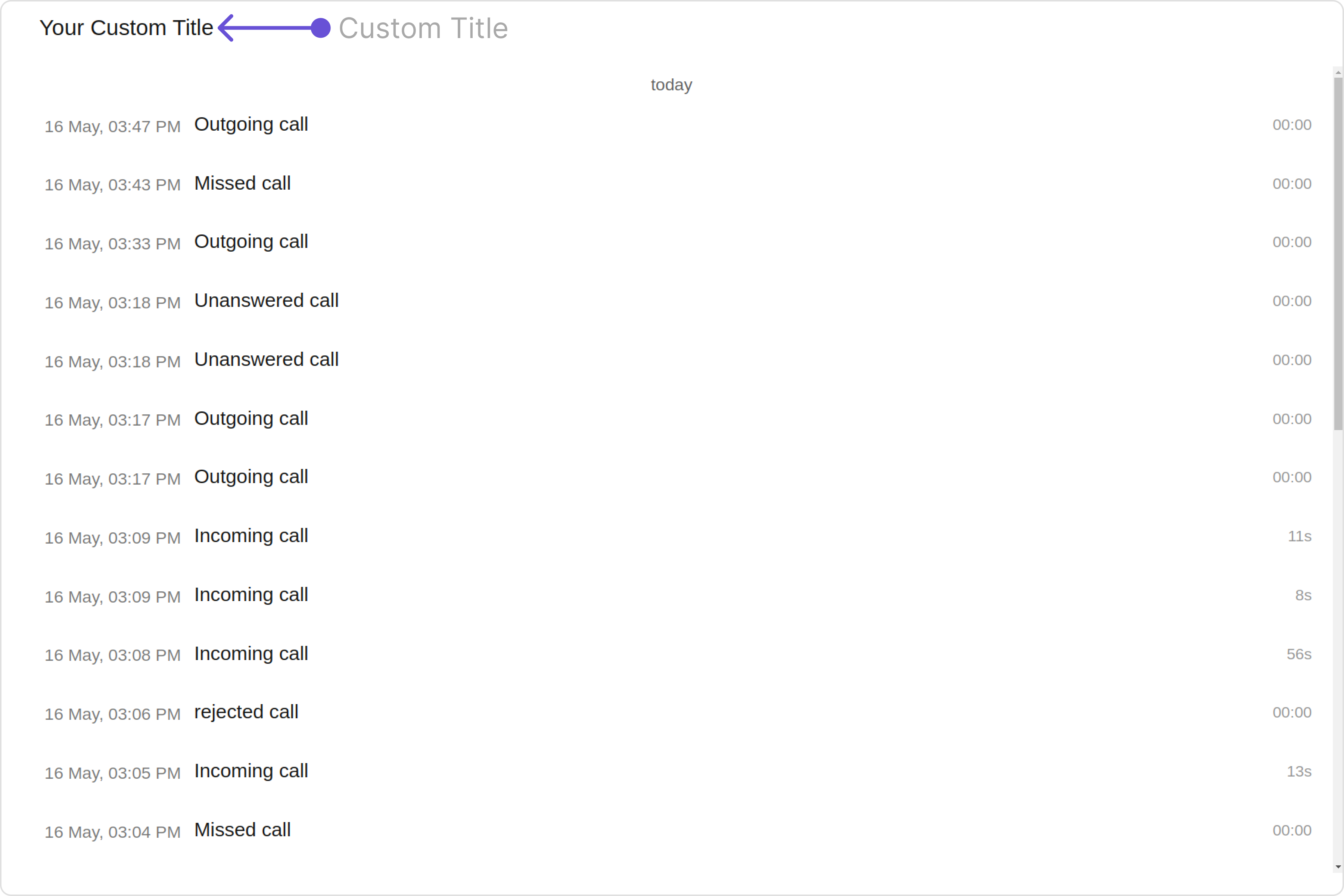

Custom:

Below is a list of customizations along with corresponding code snippets

Property	Description	Code
title	Used to set custom title	`[title]="'Your Custom Title'"`

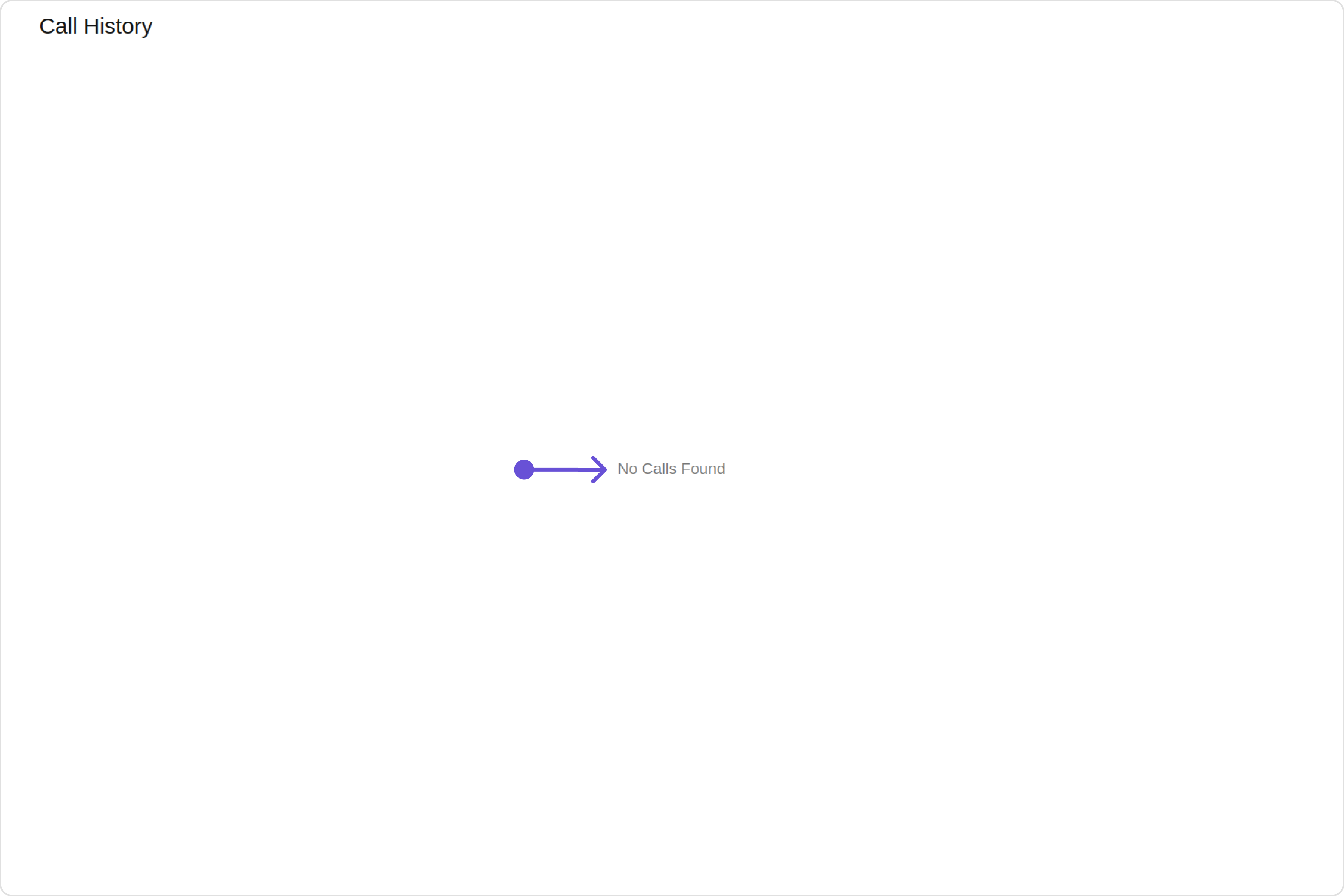

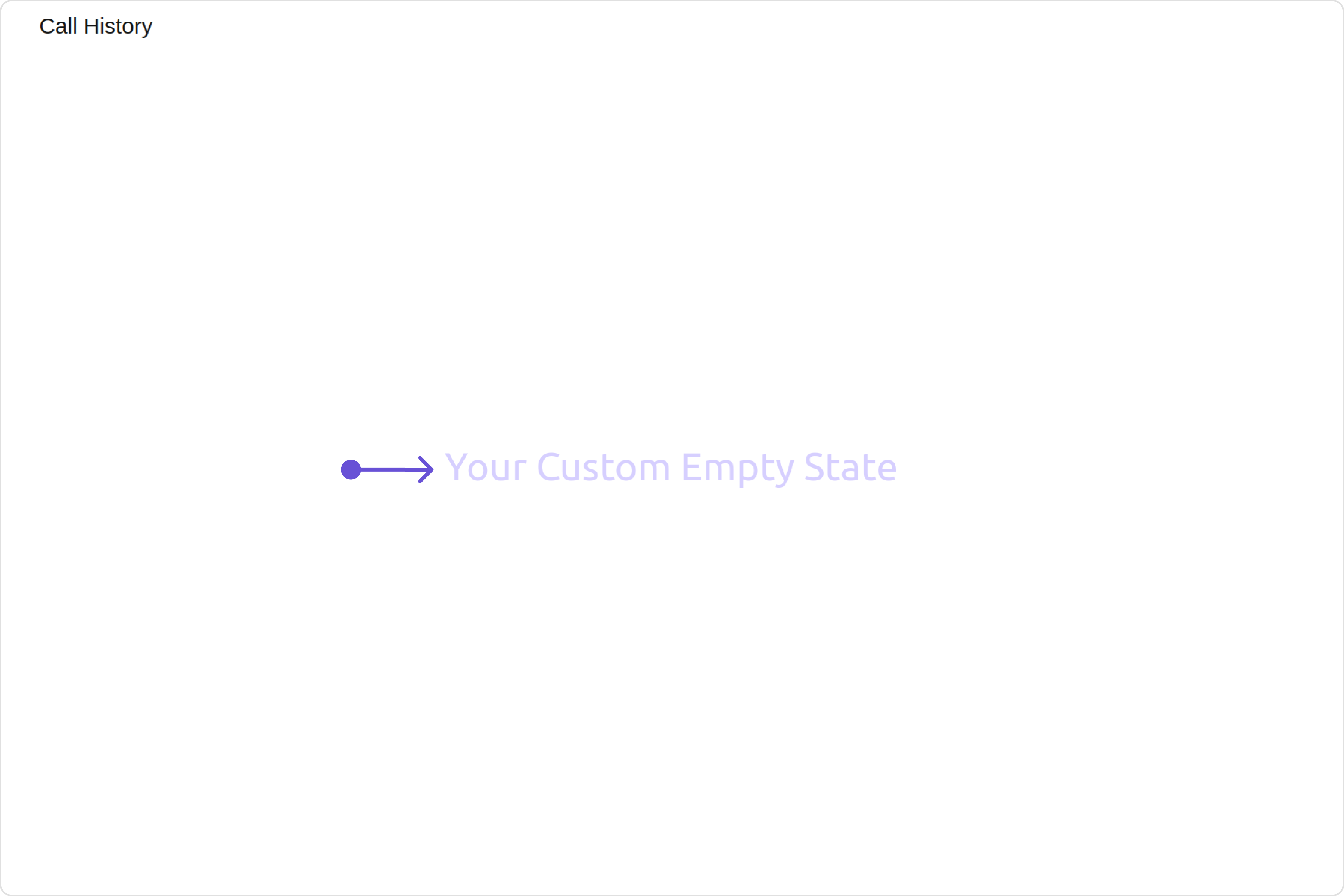

emptyStateText	Used to set custom empty state text	`[emptyStateText]="'Your Custom Empty State Text'"`
errorStateText	Used to set custom error state text	`[errorStateText]="'Your Custom Error State Text'"`
datePattern	Used to set custom date pattern	`[datePattern]="datePattern"`
dateSeparatorPattern	Used to set custom date separator pattern	`[dateSeparatorPattern]="dateSeparatorPattern"`
backIconUrl	Used to set custom back icon URL	`backIconUrl?: string;`
loadingIconURL	Used to set custom loading icon URL	`loadingIconURL?: string;`
callGroup	Used to set group object	`[callGroup]="groupObject"`
callUser	Used to set group object	`[callUser]="userObject"`

Advanced

For advanced-level customization, you can set custom views to the component. This lets you tailor each aspect of the component to fit your exact needs and application aesthetics. You can create and define your views, layouts, and UI elements and then incorporate those into the component.

SubtitleView

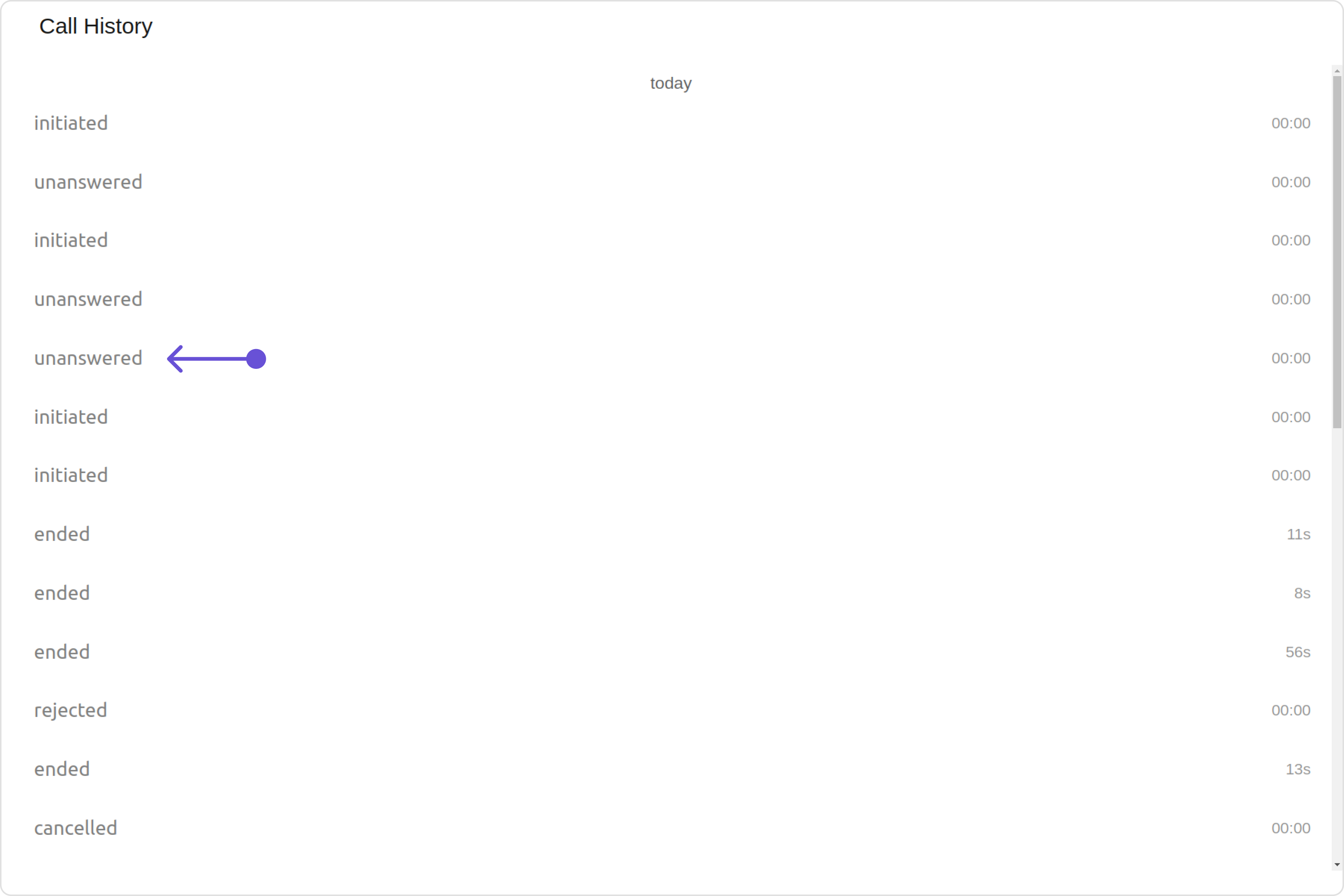

You can customize the subtitle view for each call log History item to meet your requirements Default:

Custom:

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

LoadingStateView

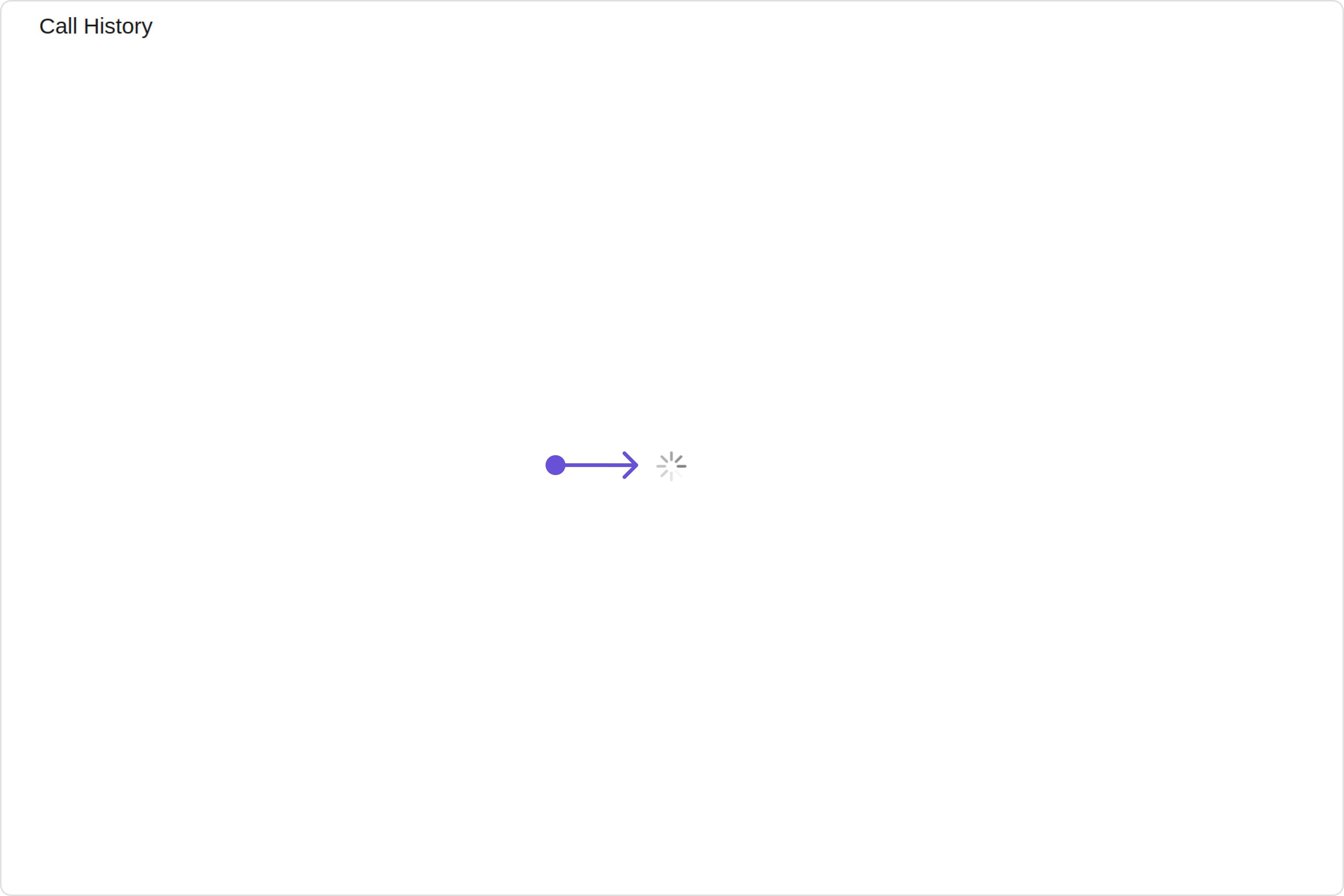

You can set a custom loader view using loadingStateView to match the loading view of your app. Default:

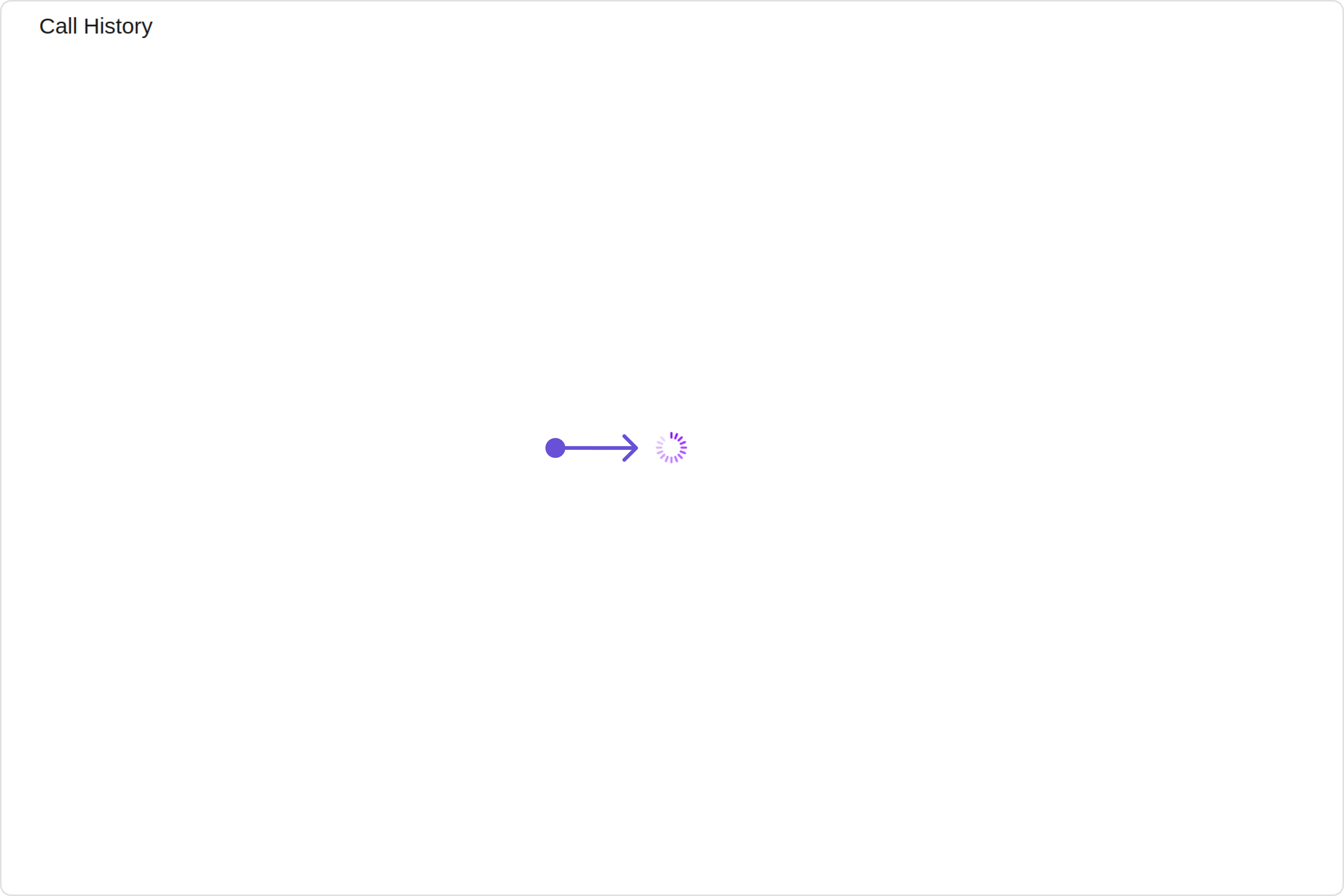

Custom:

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit, LoaderStyle } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }
  getLoaderStyle: LoaderStyle = new LoaderStyle({
    iconTint: "red",
    background: "transparent",
    height: "20px",
    width: "20px",
    border: "none",
    borderRadius: "0",
  });
  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

EmptyStateView

You can set a custom EmptyStateView using emptyStateView to match the empty view of your app. Default:

Custom:

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

ErrorStateView

You can set a custom ErrorStateView using errorStateView to match the error view of your app.

app.component.ts
app.component.html

import { CometChat } from '@cometchat/chat-sdk-javascript';
import { Component, OnInit } from '@angular/core';
import {  CometChatThemeService, CometChatUIKit } from '@cometchat/chat-uikit-angular';
import "@cometchat/uikit-elements";

@Component({
  selector: 'app-root',
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css']
})
export class AppComponent {

  constructor(private themeService:CometChatThemeService) {
    themeService.theme.palette.setMode("light")
    themeService.theme.palette.setPrimary({ light: "#6851D6", dark: "#6851D6" })
  }

  onLogin(UID?: any) {
    CometChatUIKit.login({ uid: UID }).then(
      (user) => {
        setTimeout(() => {
          window.location.reload();
        }, 1000);
      },
      (error) => {
        console.log("Login failed with exception:", { error });
      }
    );
  }
}

​Overview

​Usage

​Integration

​Actions

1. onBackClick

1. onItemClick

3. onError

​Filters

1. CallLogRequestBuilder

​Events

​Customization

​Style

1. CallLogHistory Style

2. ListItem Style

​Functionality

​Advanced

​SubtitleView

​LoadingStateView

​EmptyStateView

​ErrorStateView

Overview

Usage

Integration

Actions

Filters

Events

Customization

Style

Functionality

Advanced

SubtitleView

LoadingStateView

EmptyStateView

ErrorStateView
